Capacities to 1000 lbs.

Fifth wheel steering combined with choice of puncture proof semi-pneumatic wheels, or full pneumatic wheels make these trucks ideal for transporting light to medium loads over rough surfaces. Offset T-handle is furnished with vinyl hand grips. Retaining lip around edge of platform helps confine the load. Deck size 24" wide x 36" long. All models ship via UPS with easy assembly - only the wheels and handle need attaching.

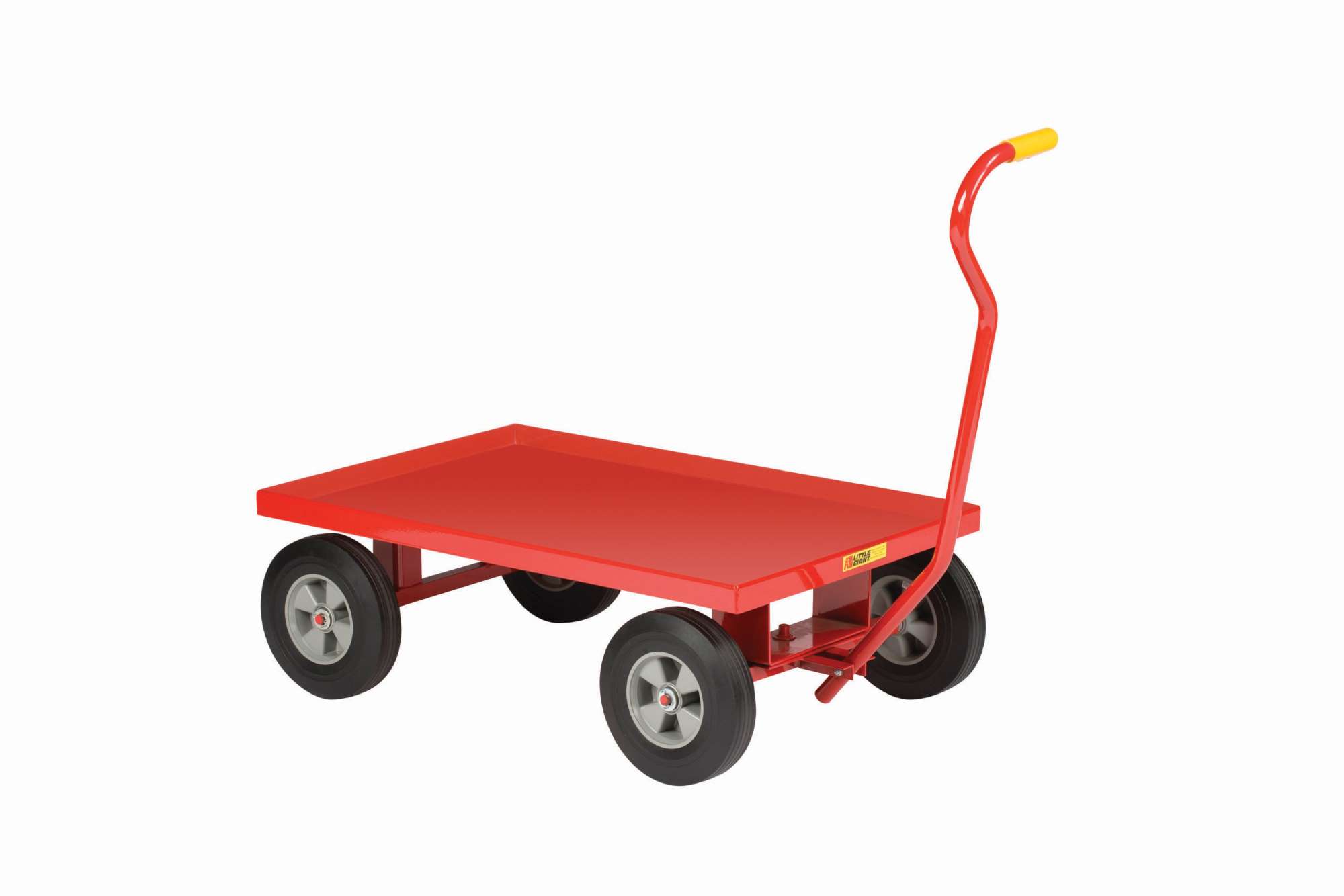

Steel Deck

Solid 12 gauge steel offers maximum durability.  Deck has 1-1/2" high retaining lip.

Deck	Model No.	Capacity (lbs.)	Wheel Type	Wt.
24" x 36"	LDW2436-8S	1000	8 x 2.50 Semi-pnuematic	70
	LDW2436-8PN	1000	9 x 3.00 Pnuematic	66
	LDW2436-10	1000	10 x 2.75 Semi-pnuematic	76
	LDW2436-10P	1000	10 x 3.50 Pnuematic	67

Steel Deck Trucks with 6" Sides

Provides additional carrying capacity.  Solid deck is formed with 6" high sides from a single sheet of 12 gauge steel and welded in place.

Expanded Metal Deck

Deck is constructed of flattened expanded metal, which allows drainage and prevents accumulation of debris, in addition to reducing weight.  Deck has 1" lip.


Deck	Model No.	Capacity (lbs.)	Wheel Type	Wt.
EXPANDED METAL DECK 24" x 36"	LDWX2436-8S	800	8 x 2.50 Semi-pnuematic	52
	LDWX2436-8PN	800	9 x 3.00 Pnuematic	48
