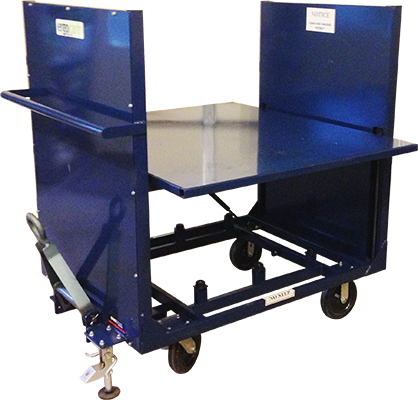

PlatformCart

PlatformCart has been ergonomically designed to increase productivity and reduce injury rates by keeping materials at the ideal ergonomic window for loading and unloading without requiring electricity, hydraulics, pneumatics or manual manipulation.

Because the PlatformCart stacks down, not up, your products’ protection is ensured, along with reducing the risk of a traumatic stress injury for your employees who will no longer need to bend and twist to perform their work.

The ergonomic PlatformCart is ideal for transporting pallet loads and can be used to stack or de-stack nestable products, tubs, and totes. This unit can be pre-loaded and easily delivered to associate’s work area for total shared ergonomic benefits.

PlatformCart has easy mobility and is towable, train-able, and tug-able by connecting multiple PlatformCarts together. It has a heavy-duty constructed frame and deck for long durability and minimal maintenance.

Customized options are available for your unique application. A variety of spring packages are available per specification. The spring packages can be adjusted to handle 350 lbs or 200 lbs every day. Variable spring tensions can be adjusted to your load requirement, with a simple J Hook system, allowing the user to pull down to detach and attach the springs, color-coded by tension amount.


Download the PlatformCart brochure

  PlatformCart
Standard Length 40″– 60″
Standard Width 40″ – 52″
Average Starting Height 30″ – 36″
Vertical Travel 26″
Lowered Height 12″
Capacity Range 200 lbs. – 2,000 lbs.
Handle Ergonomic Push Handle
Mobility Large diameter caster,
floor lock
