HEAVY DUTY WAGON TRUCKS

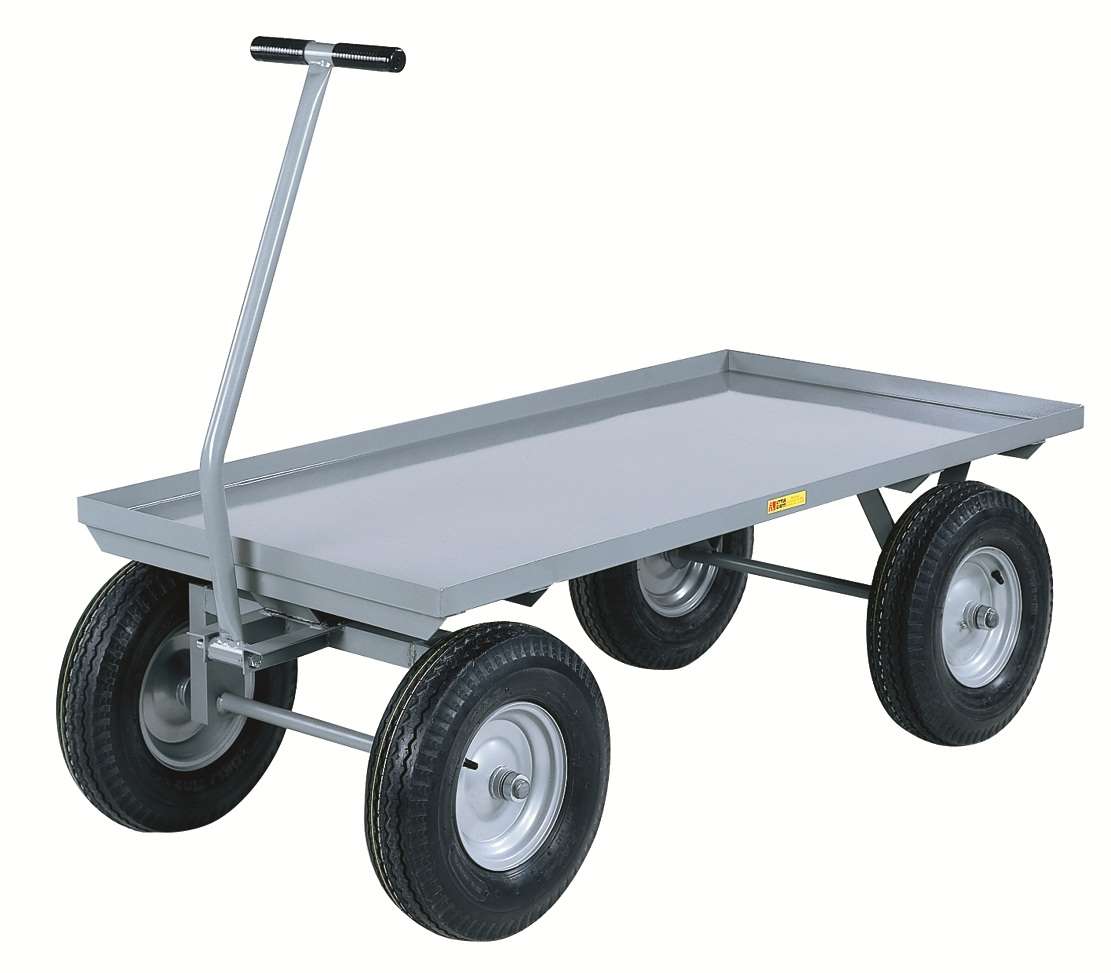

Model
CH-3060-16P






* Pan Steel Decks are standard with a 1-1/2 " retaining lip. For Flush Steel Deck, add -FSD to model number.

Flush Deck with Mold-On Rubber Wheels




Heavy-Duty Wagon Truck

3500 lbs. Capacity

Fifth wheel steering describes a type of steering where the front wheels and axle assembly pivot on a center point, which is referred to as the fifth wheel. Because the steering wheels encounter less friction when turning than would be encountered in a swivel caster, wagon trucks with fifth wheel steer- ing can be easier to maneuver under heavier load conditions. This is especially true when softer, wider pneumatic wheels are required because of use on rough or uneven surfaces. Wagon Trucks with this type of steering are typically pulled, but can also be pushed. T-handle with vinyl handgrips allows two man operation.


Product Details Chart

Model # Lip/Flush Deck Height Load Capacity Wheel Description Weight (lbs.)
CH-2040-12P   16-1/2" 2000 lbs. 12" Pneumatic 108 lbs.
CH-2040-16P   18-1/2" 3000 lbs. 16" Pneumatic 118 lbs.
CH-2448-12P   16-1/2" 2000 lbs. 12" Pneumatic 123 lbs.
CH-2448-16P   18-1/2" 3000 lbs. 16" Pneumatic 133 lbs.
CH-3048-12P   16-1/2" 2000 lbs. 12" Pneumatic 140 lbs.
CH-3048-16P   18-1/2" 3000 lbs. 16" Pneumatic 149 lbs.
CH-3060-12P   16-1/2" 2000 lbs. 12" Pneumatic 155 lbs.
CH-3060-16P   18-1/2" 3000 lbs. 16" Pneumatic 165 lbs.
CH-3072-12P   16-1/2" 2000 lbs. 12" Pneumatic 167 lbs.
CH-3072-16P   18-1/2" 3000 lbs. 16" Pneumatic 177 lbs.
CH-3660-12P   16-1/2" 2000 lbs. 12" Pneumatic 172 lbs.
CH-3660-16P   18-1/2" 3000 lbs. 16" Pneumatic 182 lbs.
CH-3672-12P   16-1/2" 2000 lbs. 12" Pneumatic 187 lbs.
CH-3672-16P   18-1/2" 3000 lbs. 16" Pneumatic 198 lbs.
CH-2040-12MR   16-1/2" 3500 lbs. 12" Mold-on Rubber 170 lbs.
CH-2448-12MR   16-1/2" 3500 lbs. 12" Mold-on Rubber 185 lbs.
CH-3048-12MR   16-1/2" 3500 lbs. 12" Mold-on Rubber 201 lbs.
CH-3060-12MR   16-1/2" 3500 lbs. 12" Mold-on Rubber 216 lbs.
CH-3072-12MR   16-1/2" 3500 lbs. 12" Mold-on Rubber 220 lbs.
CH-3660-12MR   16-1/2" 3500 lbs. 12" Mold-on Rubber 224 lbs.
CH-3672-12MR   16-1/2" 3500 lbs. 12" Mold-on Rubber 251 lbs.
CH-3672-16P-FSD Flush Deck 18-1/2" 3000 lbs. 16" Pneumatic 198 lbs.
CH3060-12MR-FSD Flush Deck 16-1/2" 3500 lbs. 12" Mold-on Rubber 216 lbs.
CH2040-12MR-FSD Flush Deck 16-1/2" 3500 lbs. 12" Mold-on Rubber 170 lbs.
CH2448-12MR-FSD Flush Deck 16-1/2" 3500 lbs. 12" Mold-on Rubber 185 lbs.
CH3048-12MR-FSD Flush Deck 16-1/2" 3500 lbs. 12" Mold-on Rubber 201 lbs.
CH3072-12MR-FSD Flush Deck 16-1/2" 3500 lbs. 12" Mold-on Rubber 220 lbs.
CH3660-12MR-FSD Flush Deck 16-1/2" 3500 lbs. 12" Mold-on Rubber 224 lbs.
CH3672-12MR-FSD Flush Deck 16-1/2" 3500 lbs. 12" Mold-on Rubber 251 lbs.
CH-2040-16P-FSD Flush Deck 18-1/2" 3000 lbs. 16" Pneumatic 118 lbs.
CH-2448-16P-FSD Flush Deck 18-1/2" 3000 lbs. 16" Pneumatic 133 lbs.
CH-3048-16P-FSD Flush Deck 18-1/2" 3000 lbs. 16" Pneumatic 149 lbs.
CH-3060-16P-FSD Flush Deck 18-1/2" 3000 lbs. 16" Pneumatic 165 lbs.
CH-3072-16P-FSD Flush Deck 18-1/2" 3000 lbs. 16" Pneumatic 177 lbs.
CH-3660-16P-FSD Flush Deck 18-1/2" 3000 lbs. 16" Pneumatic 182 lbs.
CH-2040-12P-FSD Flush Deck 16-1/2" 2000 lbs. 12" Pneumatic 108 lbs.
CH-2448-12P-FSD Flush Deck 16-1/2" 2000 lbs. 12" Pneumatic 123 lbs.
CH-3048-12P-FSD Flush Deck 16-1/2" 2000 lbs. 12" Pneumatic 140 lbs.
CH-3060-12P-FSD Flush Deck 16-1/2" 2000 lbs. 12" Pneumatic 155 lbs.
CH-3072-12P-FSD Flush Deck 16-1/2" 2000 lbs. 12" Pneumatic 167 lbs.
CH-3660-12P-FSD Flush Deck 16-1/2" 2000 lbs. 12" Pneumatic 172 lbs.
CH-3672-12P-FSD Flush Deck 16-1/2" 2000 lbs. 12" Pneumatic 187 lbs.
